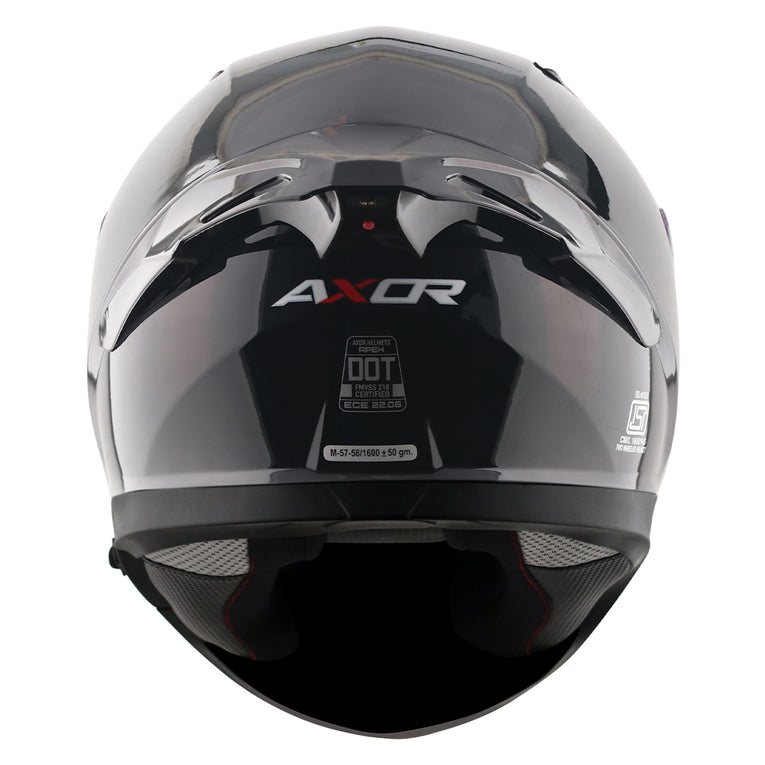

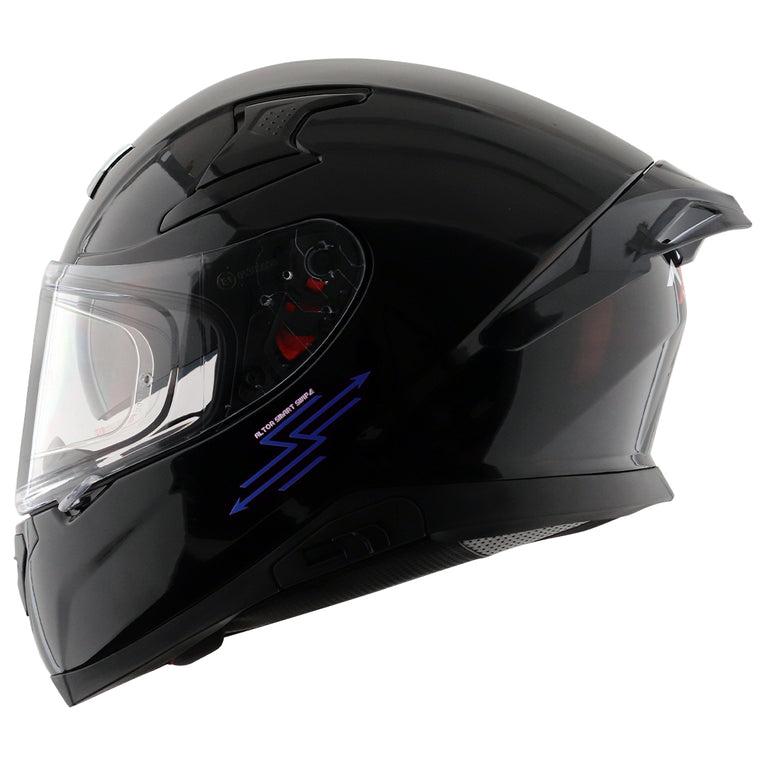

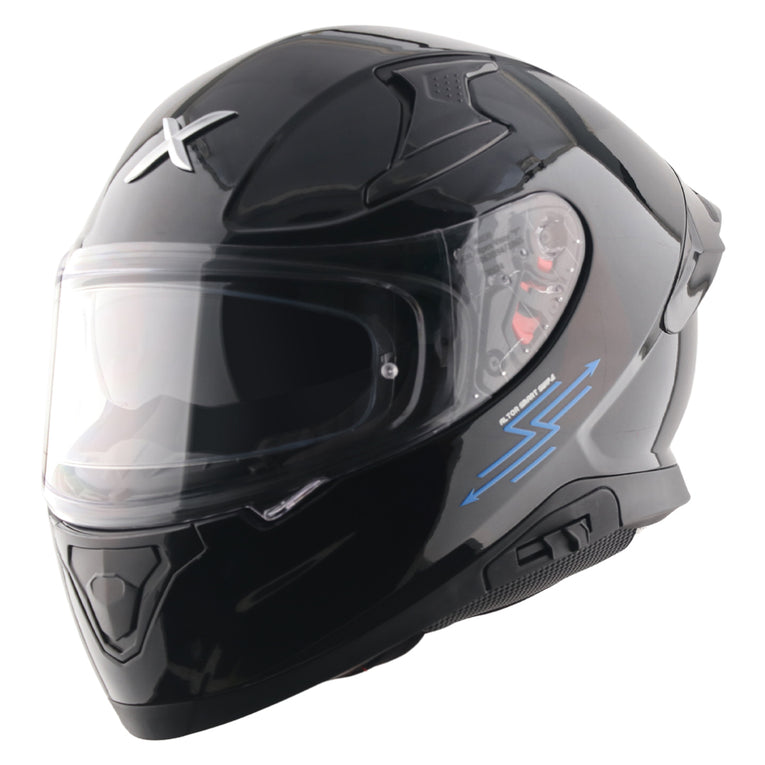

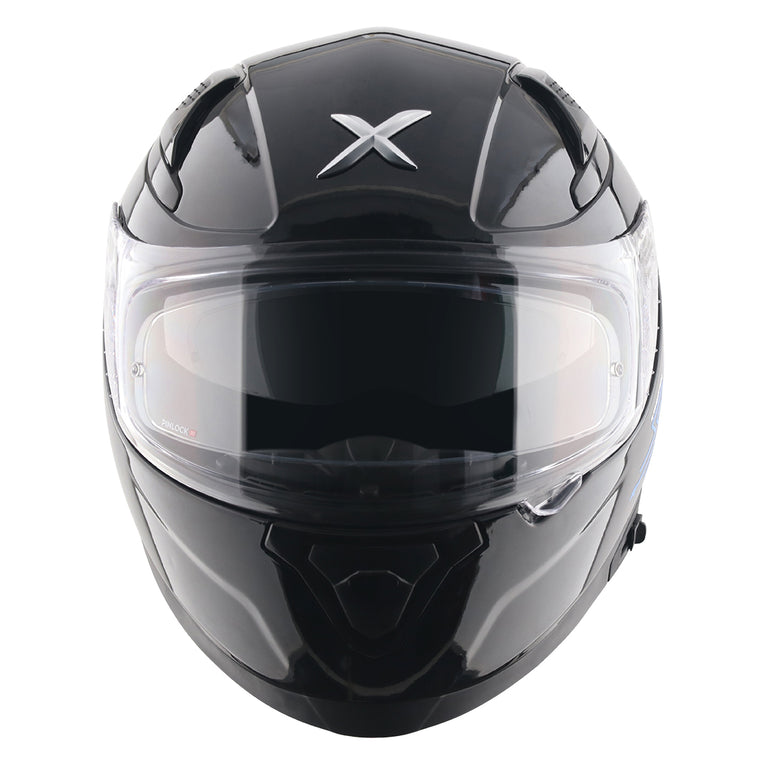

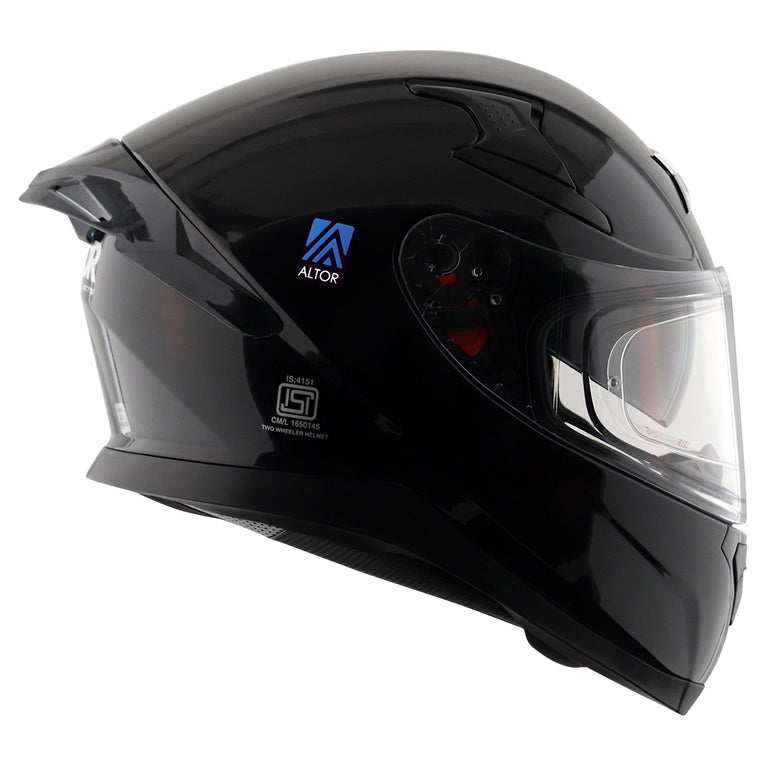

AXOR Apex Altor Smart Bluetooth Solid Gloss Black Helmet

Features:

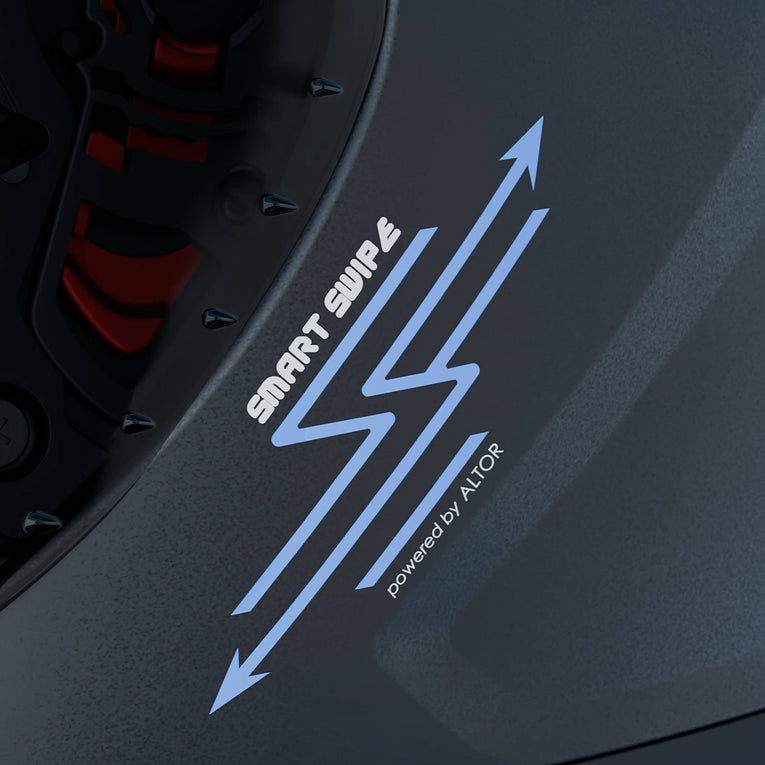

• Swipe-Controlled : Answer or reject calls, and play or pause music seamlessly with a single swipe on the on the “Altor Smart Swipe” marked area on the left side of the helmet.
• Smart Voice Assistant: Invoke Google/Siri/a virtual assistant of your choice, effortlessly on the go with a single swipe.

• Turn-by-turn audio navigation: Enjoy hands-free, precise directions directly through your helmet.

• Premium Ventilation and Comfort: Experience premium ventilation and ergonomic  design for a stylish, comfortable ride.

• Long Battery Life: Up to 12-14 hours of use on a single charge.

What’s Inside the Box?

• 1x Axor - Altor Smart Helmet

• 1x Magnetic Charging Cable

• 1x Quick Start Guide

• 1x Warranty Card

Technical Specification:

• Certifications: ISI, DOT & ECE 22.06 certified
• Weight: 1600 ±50gms
• Shell: ABS material is used for high protection.
• Visor: Scratch & UV resistant, optical polycarbonate, quick-release mechanism for easy changes
• Buckle: Double D Rings lock for secure fit
• Ventilation: 1 mouth vent, 2 top vents for airflow
• Spoiler: Enhances aerodynamics and stability

• Note: Axor Apex Altor helmets will come with
  Pinlock Systems® Original P30 Anti Fog Clear Lens Included.

Note: Images for illustration purpose only.

Main Highlights:

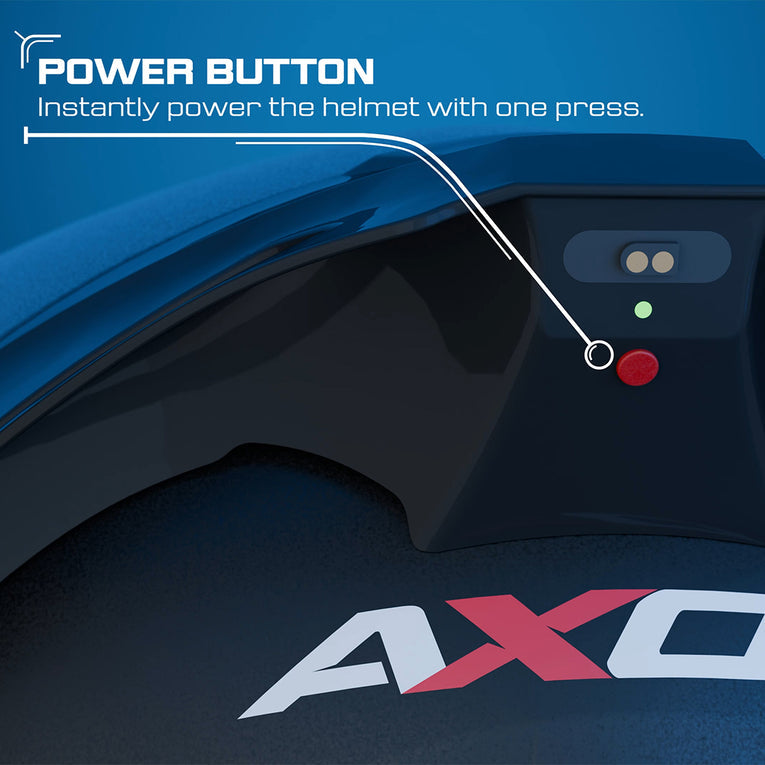

Power On and Off Your Helmet:

• Hold the power button (on the spoiler) for 3 seconds.

• The light will turn blue, and you’ll hear, “Welcome to smart riding.”

• When it changes to green, the helmet will say, “Pairing.”

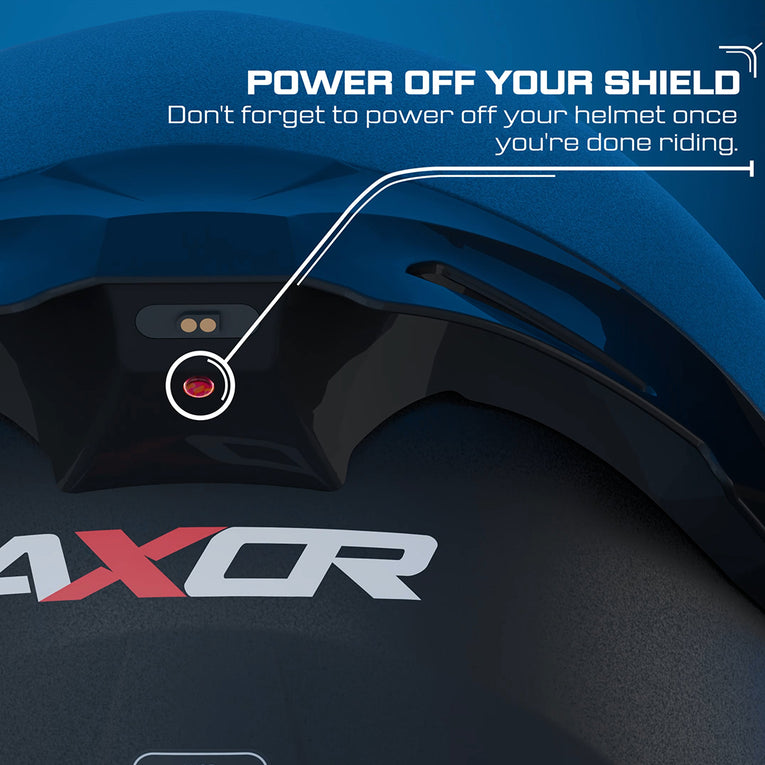

• Hold the power button for 3 seconds.

• The light will turn off, and you’ll hear, “Goodbye.”


Pairing the Helmet with Smartphone

• Open Bluetooth settings on your smartphone.

• Tap ‘Smart Riding Assistant.’

• You’ll hear, “Connected.”

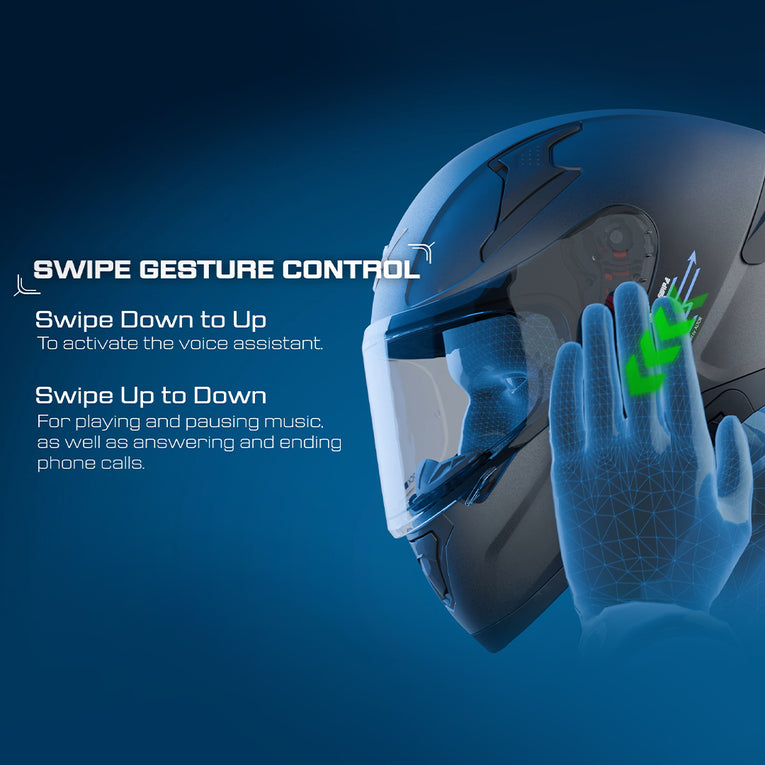

Answer/Decline Calls with a Swipe

• Answer a Call: Swipe top to bottom on the left smart swipe section.

• Hang-up Call: Swipe top to bottom on the left smart swipe section.

• Decline a Call: Swipe bottom to top on the left smart swipe section, while already on a call.

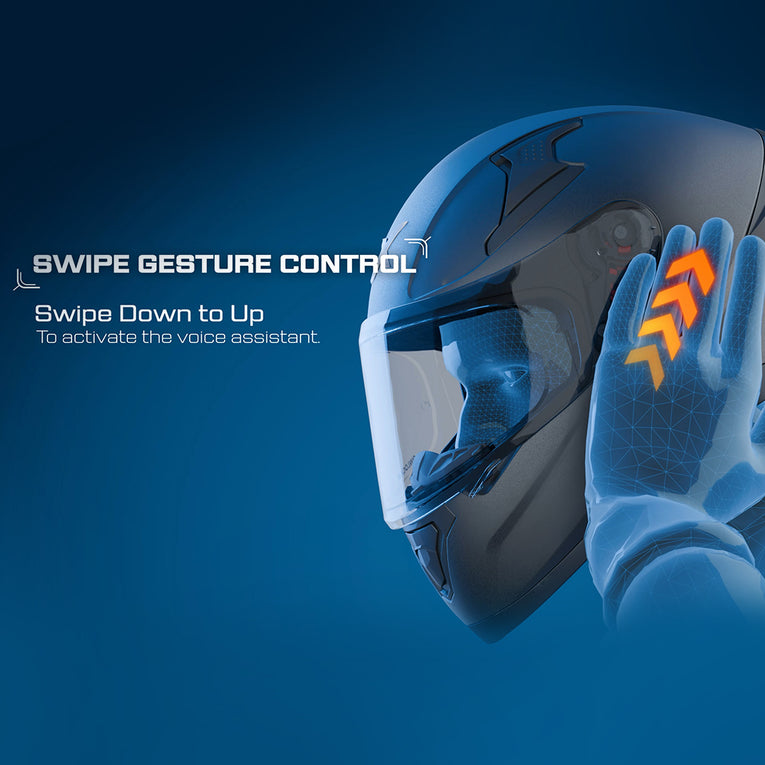

Activate Voice Assistant & Play/Pause Music

•  Swipe bottom to top on the left smart swipe section. Give voice commands like:

• Take me to the nearest petrol pump.”

• Turn up the music volume.”

• Audio feedback confirms your actions.


Play/Pause Music

• Swipe top to bottom on the left Smart swipe section to play or pause music.

#TeamMotoCentral

Warranty:
Refer to customercare@axorhelmets.com for any manufacturing defects on the shell.

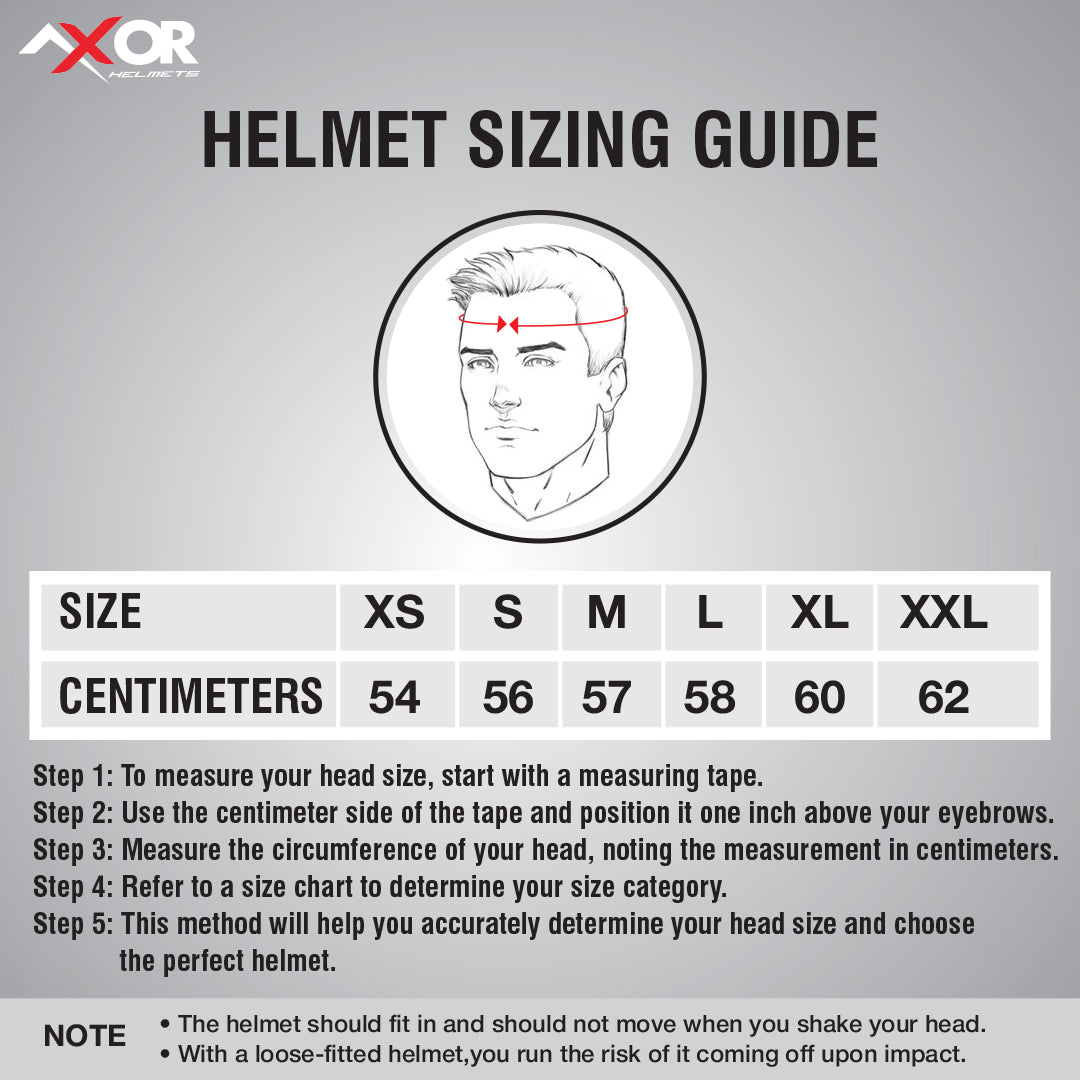

Size Chart:

The fit of the helmet is very important to ensure proper protection.
Before selecting your size, we suggest you take a tape measure and measure your head size.

Don't leave it to chance!
Consult the Axor size chart given below for your size!


Refer to our size guide to record precise measurements.

Frequently Asked Questions (FAQ):

What are the Bluetooth Specifications?

• Product Name: Smart Riding Assistant
• Dimensions: 24 cm (L) × 4.5 cm (W) × 6 cm (H)
• Water Resistance: Yes
• Battery Capacity: 500 mAh
• Certification: BIS Certified
• Music Play Time: Up to 25 hours
• Standby Time: Over 100 hours
• Call Time: Up to 36 hours
• Speaker Specification: 32 Ohms (250 mW output)
• Charging Input: Magnetic,5V / 1A
• Charging Time: Approximately 2 hours
• Bluetooth Version: 5.2 Gesture
• Support: Swipe-based gesture control
• Google Assistant Integration: Yes
• Call Accept Feature: Yes
• Call Reject Feature: Yes
• Voice: -38+3dB
• Range: 10m in Line of Sight
• Usage Temperature: -20°C to 60°C

How do I Charge the helmet?

• Use the provided magnetic charging cable to charge the helmet.
• Only use a DC 5V/1A adapter to avoid damage.
• Charging: Red LED is continuously ON.
• Charging Complete: Red LED turns OFF.
• A full charge takes approximately 2 hours.
• Battery status will be displayed once connected to your smartphone.

Can I use the helmet in the rain?

• Yes, the helmet is water-resistant, but avoid submerging it in water.

How do I reset the helmet?

• Press and hold the power button for 10 seconds to reset.

What are the recommended operating conditions for optimal performance of the device?

For best performance:

• Use the device in ambient temperatures below 45°C to maintain electronic efficiency.
• Always wear a properly fitted helmet as designed, since modifications can impact acoustic fidelity and gesture recognition accuracy.
• While the device works in moderate rain, dry environments are recommended for optimal audio quality.

What can I expect in terms of audio performance during calls, music playback, and voice assistant use while riding?

• Call Clarity: You'll experience ≥98% word recognition in static or urban conditions up to 60 km/h. The voice remains audible up to 100 km/h, though minor distortion may occur due to wind. It's advised to avoid high-speed calls above 100 km/h for safety.
• Music Playback: The system delivers clear mid and high frequencies. Slight distortion may occur above 100 km/h due to wind and noise, and also at 90–100% volume levels, though this does not affect overall performance.
• Voice Assistant: Commands like “Hey Siri” or “Ok Google” are reliably recognised at speeds up to 90 km/h. At speeds beyond 100 km/h, occasional false activation may occur.

How reliable and responsive are the gesture controls while riding?

The gesture controls are designed for high accuracy and reliability:

• False Activation Prevention: Gestures are not falsely triggered by normal head movements, even at speeds over 120 km/h, wind impact up to 120 km/h, or in light to moderate rain.
• Gesture Latency: All recognized gestures are executed with a delay of less than 2 seconds, ensuring quick and seamless interaction while riding.

What are the system and power performance specifications of the device?

• Boot Time: The device powers on and becomes active within 4 seconds.
• Bluetooth Pairing: Connects with previously paired devices in 4 seconds or less.
• Battery Life: Offers over 12 hours of continuous use, including music and calls.
• Overheat Tolerance: Functions reliably at ambient temperatures up to 45°C.
• Audio Routing Priority: Automatically priorities audio in the following order — Calls > Music > Navigation — for a seamless user experience.

What are the Bluetooth and connectivity capabilities of the device?

•  Classic Bluetooth Compatibility: The device supports simultaneous operation of  Classic Bluetooth without any packet loss or audio drop.
• Auto Reconnect: If the connection drops, it automatically reconnects to the last paired device within 10 seconds.
• Connectivity Range: Maintains a stable Bluetooth connection up to 20 meters in a clear line-of-sight environment.

What are the general recommendations for optimal use of the device?

To ensure the best performance and user experience:

• Always wear the helmet with a firm and proper fit to maintain correct mic and speaker alignment.
• Use the device with smartphones that support BLE 4.0 or higher for smooth connectivity.
• Avoid riding in extreme weather conditions, such as storms, to minimise audio interference.
• Fully charge the device before long rides to ensure uninterrupted usage.
• Keep the firmware updated to maintain compatibility and optimal performance.

What is the country of origin?

• India
