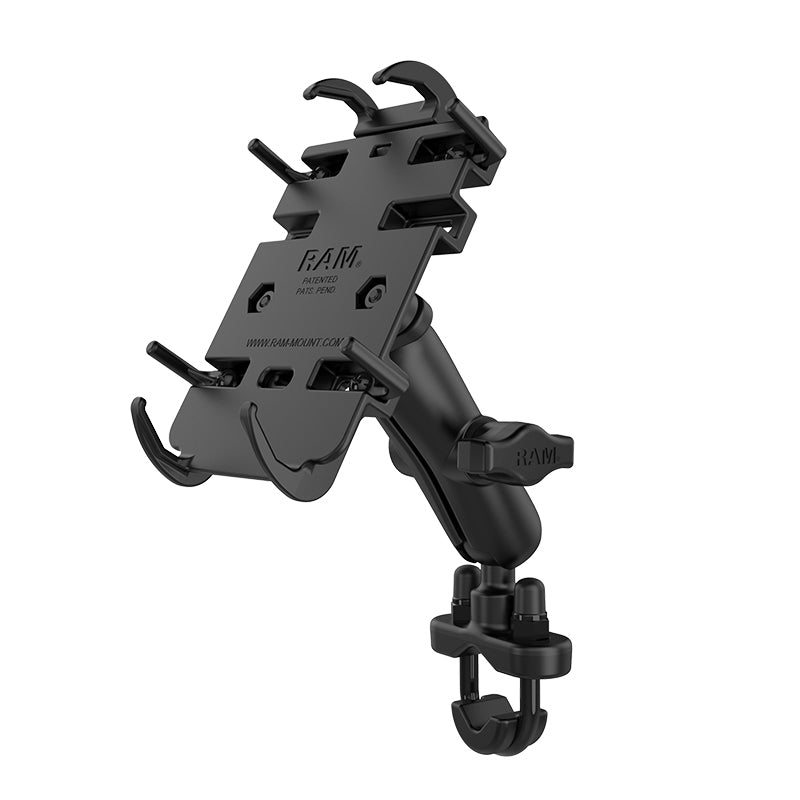

RAM Mounts Quick Grip Medium Phone Mount with Handlebar U Bolt Base (RAM-B-149Z-PD3U) Medium Arm
Regular price
Rs. 5,399.00
FEATURES
- Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of phones and other devices; easily insert and remove your phone with one hand
- Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
OVERVIEW
The RAM Quick-Grip™ Handlebar Mount consists of a zinc coated u-bolt base, double socket arm and spring loaded cradle for supporting most phones. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Height Range: 4.75" - 5.75"
Width Range: 2.19" - 3.25"
Max Depth: .72"
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.75 lbs.
The RAM Quick-Grip™ Handlebar Mount consists of a zinc coated u-bolt base, double socket arm and spring loaded cradle for supporting most phones. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Height Range: 4.75" - 5.75"
Width Range: 2.19" - 3.25"
Max Depth: .72"
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.75 lbs.
PART NUMBER: RAM-B-149Z-PD3U
Warranty:
All RAM Mounts are warranted against defects in materials and workmanship for 05 YEARS from original purchase taken care by manufacturer through RAM Mounts India channel.
All RAM Mounts are warranted against defects in materials and workmanship for 05 YEARS from original purchase taken care by manufacturer through RAM Mounts India channel.
Note:
Images shown are for illustration purpose only. Actual product may vary in color/features as per RAM MOUNTS without any further discretion.
Images shown are for illustration purpose only. Actual product may vary in color/features as per RAM MOUNTS without any further discretion.
ORDER - SPECIAL TERMS & CONDITIONS
- Images shown for illustration purpose only.
- Actual product may vary in finish, specifications, look without any discretion from manufacturer.
- Refer to your vehicle's user manual for more details before placing the orders.
- RAM Mounts products do NOT qualify for any exchange, returns, refunds or replacements as per listed return policy.
- All claims for warranty to be handled by manufacturer directly under official India Channel partner as per official warranty terms.
