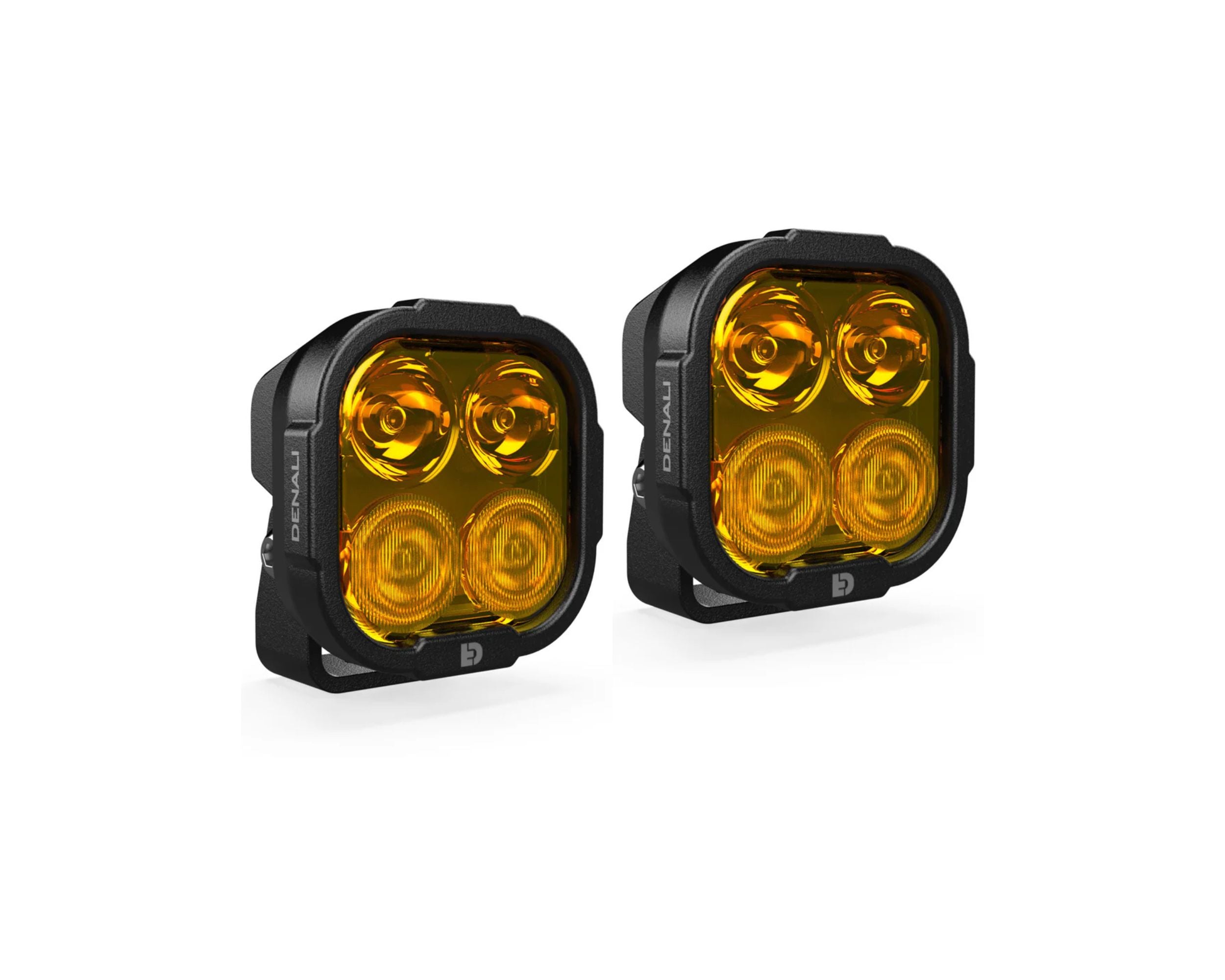

DENALI DL4 Auxiliary LED Lights Amber Lights Only Set of 2 (DNL.DL4.050.A.2)

DENALI DL4 Auxiliary LED Lights Amber

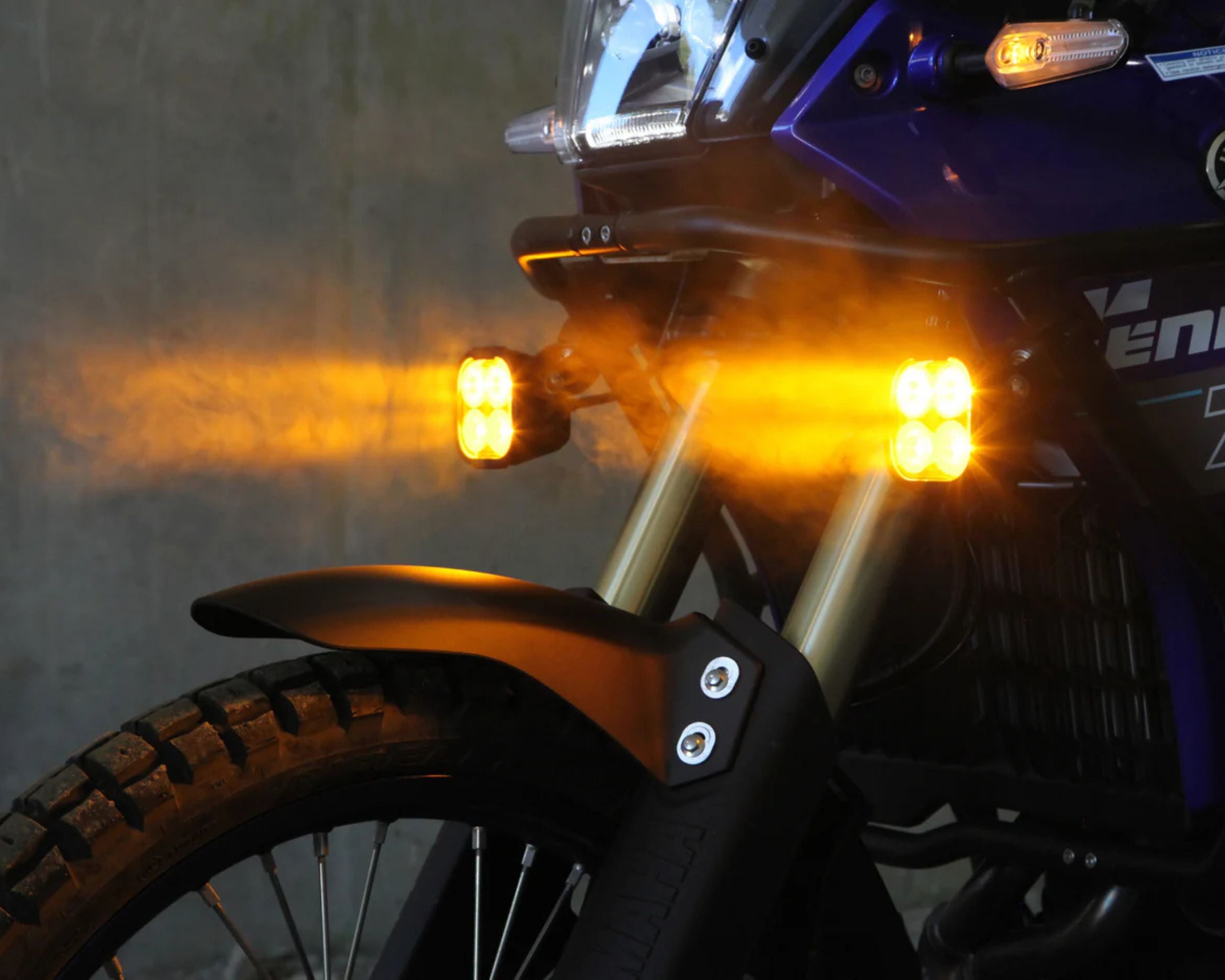

The DL4’s refined hybrid beam makes it the ideal primary auxiliary light for small to medium bikes, while its compact design also suits low fender mounting on larger ADV bikes

Product Description

• Denali Electronics brings you the DL4 Auxiliary LED Lights – Amber. The DL4 features a perfected hybrid driving beam and is the ideal option for your primary auxiliary driving lights on small to medium sized bikes. It is also small and light enough that it can be mounted in lower fender applications on larger ADV bikes.
• With its 4-LED design, optimized beam pattern, and a powerful 3,400 lumens per pod (6,800 per pair), the DL4 delivers serious lighting performance – bright enough to lead the way, and balanced enough to complement any setup.
• Denali’s DL Series Driving Lights are the brightest and most durable motorcycle driving lights that won’t break the bank. Engineered based on a decade of customer feedback, these Driving Lights are purpose-built to deliver best-in-class beam performance, unmatched durability, and Denali’s signature dimming technology at a price point that is more approachable to new riders, younger riders, and Denali’s rapidly growing international customer base!
• How can they be this good and so affordable at the same time? Thanks to Denali’s single-piece TIR optic and robotically sealed construction, they are able to reduce the number of parts, accelerate assembly time, and reduce the overall production costs without sacrificing any changes to their top-bin LEDs, circuitry, or optical design. The result is a indestructible & submersible light pod that can deliver more light per dollar than any of Denali’s competitors. All DL Series lamps are available in white, amber, or selective yellow beam options and are plug-&-play compatible with all Denali lighting harnesses and controllers.

Key Features include:

• Top-bin CREE LEDs driven at 8 watts each deliver a remarkably powerful beam in a beefy 4-LED square package.

Oversized TIR Optics – Perfected Hybrid Driving Beam

• Denali’s proprietary TIR optics distribute the beam of light more efficiently than traditional reflector optics, giving their driving beam unmatched distance and width from the most compact housing possible.

DataDim™ Plug-&-Play Dimming

• Denali’s signature 3-wire design uses dedicated dimming wiring for maximum reliability and plug-&-play connection to all Denali light harnesses, DialDim, and CANsmart Controllers..

DrySeal™ Sealed Beam Construction

• Denali’s patented technique robotically seals the lens and uses internal potting at the cable entry to guarantee 100% waterproof submersible performance even when connectors are removed.

Overbuilt Not Overpriced

• Denali’s 4mm thick powder-coated steel brackets & robust heatsink enable an impressive 21grms vibration rating, while their Polycarbonate lenses are reinforced with UV hard coating.

Note:

• THIS SKU ONLY HAS LED LIGHT PODS INCLUDED. NO WIRING HARNESS AND SWITCH ARE INCLUDED

• DL-series lamps are not compatible with DENALI fender mount LAH.00.10700.B

• This is a Universal Fit Item. It is designed to fit many vehicles. Universal products may require a vehicle-specific fit kit (sold separately) or other modifications for installation. Universal products are not guaranteed to fit every vehicle. Please check the product description and installation instructions for requirements.

Highlights

• HiDrive LEDs 6,800 Lumens Per Pair

• Driving beam with unmatched distance and width from the most compact housing possible

• DataDim™ Plug-&-Play Dimming

• DrySeal™ Sealed Beam Construction ensures 100% waterproof submersible performance even when connectors are removed

• Robust and durable build – The 4mm thick powder-coated steel brackets & robust heatsink enable an impressive 21grms vibration rating, while the Polycarbonate lenses are reinforced with UV hard coating

• Pods ONLY

Required Accessories:

• Make sure you choose an appropriate wiring harness (To be bought seperately)

Product Specifications (Single Pair)

• LED’s: Cree XPL HI (8W each)

• Watts: 32W | 64W

• Amp Draw: 2.7A | 5.4A

• Raw Lumens: 3,400 | 6,800

• Beam Distance: 250m (820 feet) | 333m (1091 feet)

• Beam Width: 48m (157 feet) | 64m (209 feet)

• Connector: DataDim Compatible 3-wire DT

• Color Temperature: 6000K

• Operating Voltage: 9-32 VDC

• Pod Size: 76.2 mm x 76.2 mm Square x 50.8 mm Deep

• Pod Weight: 0.54 kg | 1.08 kg

• IP Rating: IP68 & 69K Waterproof Submersible & High-Pressure Spray

What’s in the box?

• DENALI DL4 Auxiliary LED Lights – Amber – Lights Only – Set of 2 x 1 pair

• 3-wire pigtail x 2

• Mounting Instructions

Installation Instructions: View
